【ETC】N2 Reflow Equipment NJ0611 Series
Feature
・Precise and high quality heat up performance

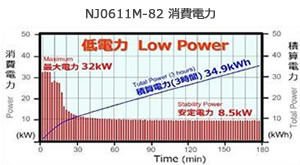

・Ultra low power consumption (40% reduced comparing with our previous model)

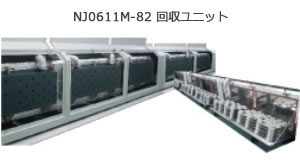

・Large-capacity, High efficient flux collection

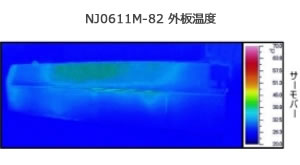

・Heat-insulation designed for consideration of working environment
Specifications
| Model No. | NJ0611M-82 | NJ0611M-102 | NJ1611L-82 | NJ0611L-102 | |
|---|---|---|---|---|---|
| Heating Zone | 8 | 10 | 8 | 10 | |
| Cooling Zone | 2 | ||||
| Power | AC200V 3Φ | ||||
| Start up Power |
Max. 32kW |
Max.42.5kW | Max.35kW | Max. 44kW | |
| Normal Power | Approx. 8.5kW | Approx. 11.5kW | Approx. 9.5kW | Approx. 12kW | |
| N2 Consumption | Approx. 15 ～ 18m3/h | Approx. 18m3/h | |||
| Dimension | Length | 5,134mm | 5,704mm | 5,431mm | 6,322mm |
| Width | 1,360mm | ||||
| Height | 1,460mm | 1,525mm | |||
| PCB | Width | 50 ～ 400mm | 50 ～ 500mm | ||
| Length | 70 ～ 500mm | 70 ～ 600mm | |||
| Component Height | Upper : 27mm Lower：27mm | ||||
| Flux Collection | Standard Equipment | ||||
