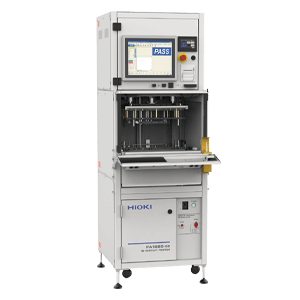

【HIOKI】IN-CIRCUIT TESTER　FA1220-02

IN-CIRCUIT TESTER　FA1220-02

Batch Testing System for Improved Populated Circuit Board Productivity

Key Features

  • Slide-in mechanism simplifies installation and removal of test fixtures, reducing man-hours and workload.
  • Extension range of options that reduces setup man-hours and boosts productivity.
  • Numerous measurement parameters and detecting defects for a wide variety of inspections.
  • Productivity, quality, and safety.
  • Data creation support functionality: ATG function.

FA1220-02 Specifications Overview

Number of test points Standard: 0 pins (scanner boards optional)
Max. 2048 pins (expandable in blocks of 128 pins)*
* The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the product.
Number of test steps Group data: 256 groups
Round-robin short/open data: 2048 pins*
Macro data: 2048 pins*/2048 steps (regardless of pin count)
Component data: 10000 steps
Charge data: 40 groups
Pin contact data: 2048 pins*
IC data: 500 steps (max. 2048 pins/step)*

* The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the product.
Measurement unit DC voltmeter: 800 μV f.s. to 25 V f.s., 8 ranges
DC ammeter: 100 nA f.s. to 250 mA f.s., 9 ranges
AC ammeter: 10 μA rms to 10 mA rms, 4 ranges
HV voltmeter: 25 mV f.s. to 250 V f.s. (Requires E4210 and E4203)
HV ammeter: 1.2 μA f.s. to 120 mA f.s. (Requires E4210 and E4203)
Scanner unit Switch type: analog (Scanner Board E4201 and E4202), read relay (Scanner Board E4203)
Number of channels: 128 per board
Input protection: ±15 V (Scanner Board E4201 and E4202), none (Scanner Board E4203)
External I/O Ethernet (LAN) 100Base-TX ×1 (please contact Hioki for communication with external devices.)
Control unit – Measurement control
Operating system: Real-time operating system
Storage device: SD card (for booting system)

– Main unit control
Operating system: Windows 10 Pro (64-bit)
Storage device: 64 GB SSD
Operation: keyboard and mouse
Display: 15-inch display
Printer: E4243 (option)
Power supply Rated supply voltage: 100 to 240 V AC, 50 Hz/60 Hz
Maximum power consumption: 1 kVA
Dimensions and mass 655 mm (25.79 in.) W × 1830 mm (72.05 in.) H × 705 mm (27.76 in.) D, 310 kg (10934.7 oz.)
Included accessories Instruction Manual ×1, Test lead ×1, Application disc ×1, Positioning screws ×4, Maintenance key (for opening and closing the maintenance door) ×1
