Multi-functional Desktop AOI   “i-Series”
Automate the visual inspection after assembling process

The visual inspection in the production site cannot secure the traceability of inspection result. Also there is a possibility of escaping the defects.
Workpiece setting space and clearance issue occurs with the inspection after casing.
A device setup takes time if you customize the robot and camera by your own for inspection.
I series is the inspection system which can solve these issues.

Features

Major inspection item

•Wrong component
•Text (OCR for optional)
•Screw presence
•Missing parts in tray
•Scratch
•Dent
•THT Solder joint
(No solder, Solder balls, Solder bridge)



No teaching pendant necessary

3 axes drive for XYZ axes. Equipped jig plate as standard.
Intuitive operation
・Easy operation of 3 axes (XYZ axes)
・movement by clicking and mouse dragging
Z axis ; enable inspection of tall component
・Changeable focus for optimal image acquisition

Lighting selection by inspection purpose

Barcode reading

  • Sending inspection result to Catch System
  • Possible to assign inspection result

Support USER I/O interface

■ Equipped with 37 pin D-sub connector
Available output with 8 points and input with 8 points for I/O.
Possible to output OK/NG signal of inspection result and
operation instruction such as inspection start.
Note: Switch Box is not available while using USER I/O.

Catch System (Optional)

Catch System collects every information from AOI, and establishes the traceability in the production control

Store the inspection result to the database, and possible to confirm the image data.
Possible to improve the production quality by grasping the operation status of each AOI in production line, and by collecting and analyzing the accumulated data.
*Another, Windows PC is required for Catch System

●Operation with barcode
Matching inspection data and target workpiece
Instantly access to the inspection data or image by reading the barcode on target workpiece with barcode reader.

Off Line Teaching(Optional)

Create inspection data without stopping AOI
Possible to create inspection data by off-line, with same screen image of AOI.
Debugging operation is possible with OLT by saving NG image right after the inspection. Suitable to make use for internal training.
Note: Another Mac PC which has equivalent spec.
※with AOI PC is required for OLT.

Jig installation

Possible to install the jig for Y axis table. Note: Jig is not included. Please prepare depending on workpiece.

Safety cover with area sensor(Optional)

Surround the device with acrylic cover and apply area sensor at the opening for workpiece.

Note: Figure is only an image sample.
It may differ from real construction.

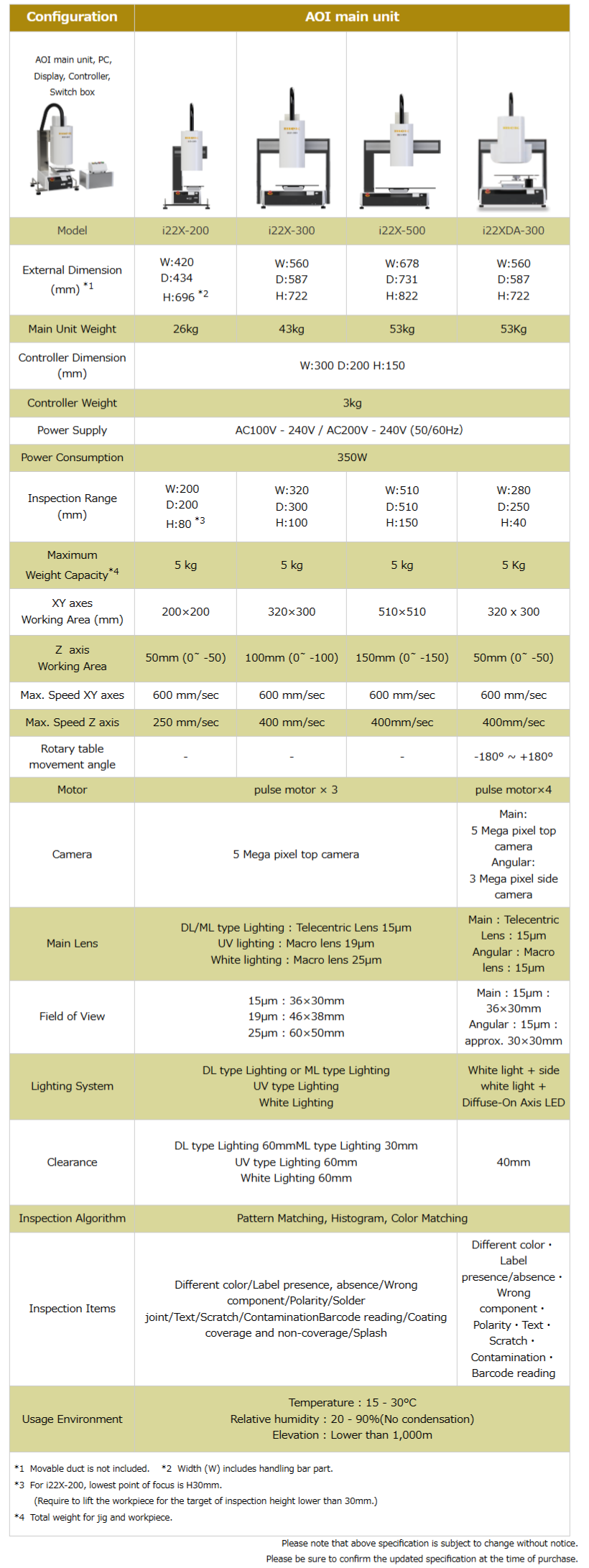

Specification
