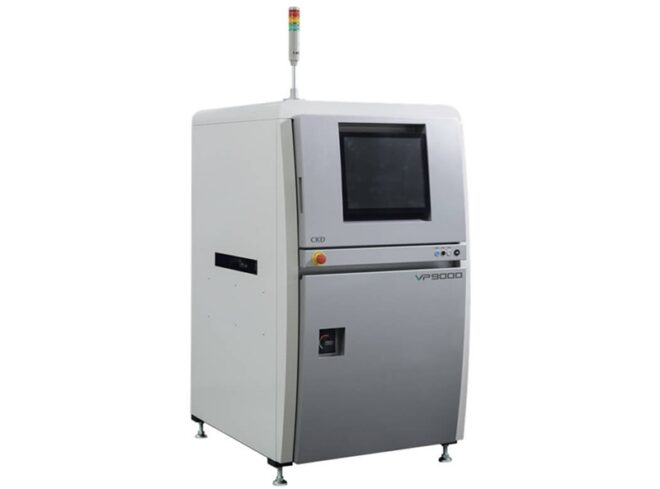

【CKD】Solder Paste Inspection Machine VP9000
Feature
Top share in the Printed Circuit Board (PCB) production industry. The inspection machine that improves the overall quality of PCB.
For PCBs of smartphones and automotive components, Monitoring the volume and height of solder paste is important. By conventional 2D inspection or 3D laser inspection methods, correct solder condition from PCB surface as 0 μm, which is considered difficult, can be inspected with this product. (※on the specification by super-fine resolution)
A reduction in the inspection speed which is likely to occur in high-definition solder inspection is optimized as the maximum speed by a multi-inspection function for switching three types of resolution in accordance with the size of solder to be applied, and at the same time, an image processing module for judging foreign material and a glue bonding condition necessary for strengthening the mounting of components are inspected as options.

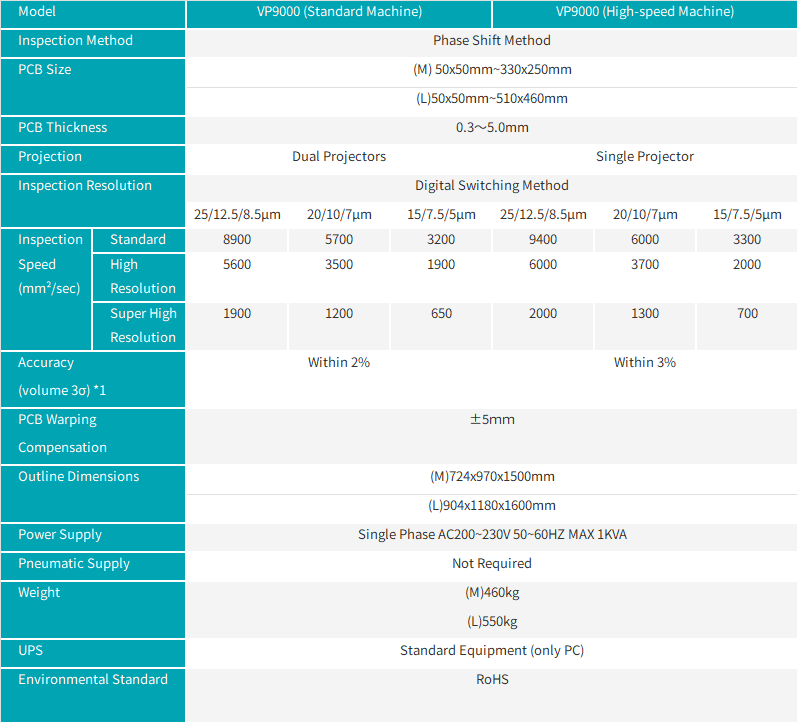

Specification
| VP9000 (Standard) |
VP9000 (High-speed) |
||||||
|---|---|---|---|---|---|---|---|
| Inspection Method | Phase Shift Method | ||||||
| PCB Size | (M) 50x50mm~330x250mm (L)50x50mm~510x460mm |
||||||
| PCB Thickness | 0.3～5.0mm | ||||||
| Projection | Dual Projectors | Single Projector | |||||
| Inspection Resolution | Digital Switching Method | ||||||
| 25/12.5/8.5μm | 20/10/7μm | 15/7.5/5μm | 25/12.5/8.5μm | 20/10/7μm | 15/7.5/5μm | ||
| Inspection Speed (mm²/sec) |
Standard | 8900 | 5700 | 3200 | 9400 | 6000 | 3300 |
| High Resolution |
5600 | 3500 | 1900 | 6000 | 3700 | 2000 | |
| Super High Resolution |
1900 | 1200 | 650 | 2000 | 1300 | 700 | |
| Accuracy (volume 3σ) *1 |
Within 2% | Within 3% | |||||
| PCB Warping Compensation |
±5ｍｍ | ||||||
| Outline Dimensions | (M)724x970x1500mm (L)904x1180x1600mm |
||||||
| Power Supply | Single Phase AC200~230V 50~60HZ MAX 1KVA | ||||||
| Pneumatic Supply | Not Required | ||||||
| Weight | (M)460kg (L)550kg |
||||||
| UPS | Standard Equipment (only PC) | ||||||
| Environmental Standard | RoHS | ||||||
optiuonal
- Data Station (connect up to 6 sets of machines)
- Loading Conveyor
- Unloading Conveyor
- Glue Inspection
- Transformer
- 1D & 2D Code Reading
- Mount Data Conversion Software
- ePM-SPI Software
- Keyboard Tray
- CE Compliance (Large machines only)
- Feedback/Feedforward
- Ultrafine Resolution (10, 8, 5μm)
