【SAWA CORPORATION】SCI-EZY
Mounter Nozzle Cleaner / Checker
- Set YAMAHA Mounter Nozzle Holder DIRECTLY.
- Inspection (some are Optional) find defective nozzles.
- Track and trace the nozzle status for each cleaning by reading the 2D code on the nozzle.
特徴
-
Easy with a batch set
Directly set the nozzle holder from the mounter to the cleaning machine.
-
Save more than 150 min
Cleaning with Ultrasonic + Vacuuming significantly enables to cut off the working hours of the manpower.
-
Traceability

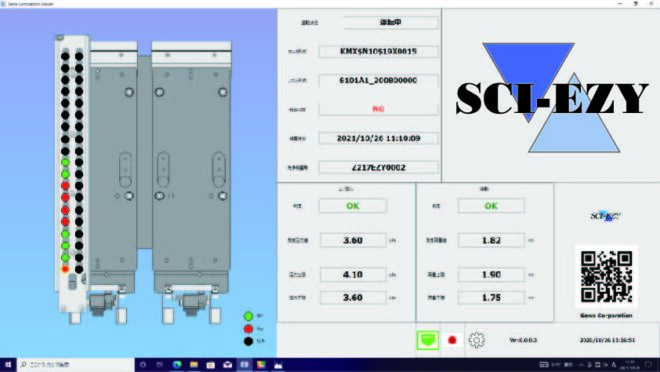

“Cleaning history”, “inspection result” and “inspection image” are linked to the nozzle ID and stored in management PC.
基本仕様
| Product No. | SCI-EZY |
|---|---|
| Dimension, Weight | W: 800 x D: 800 x H: 1,500 mm (incl. signal tower H 1,902mm) Approx. 290 kg |
| Power | AC 100〜240 V 50/60 Hz 260 VA |
| Ultrasonic | Frequency 38±4 kHz Output 60 W |
| Air | 0.45 MPa 400 NL/min |
| Nozzle holder | 1～4 ( For 1 mounter ) |
| Available nozzle | 80 series (not available for QFP and large parts) |
| Applicable standard | CE (RoHS2) |
| Takt time (152 nozzles) | less than 62mins (less than 80mins for additional sliding/camera inspection) * *Time may differ depending on condition. Specifications are subjected to change without notice. |
Specifications and appearance are subject to change without notice for improvement.
