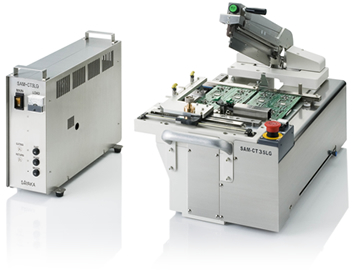

【SAYAKA】DRY SLICER　SAM-CT3SLG

 DRY SLICER(DESKTOP)

Hole card of low cost manual slicer for test cutting and high-mix low-volume production

Feature

• Compact desktop design is perfect for cell production.
• Achieved a low price by manual positioning. Support mass production by lettering guide.
• Use blade to cut PCB like grinding process, get smooth finish of PCB cross section with low stress.
• Attached holding mechanism which has dust collection function, reduce PCB vibration during cutting and also collect dust effectively.
• Reduce PCB production cost and also prevent PCB warpage, because v-groove free.
• Blade standard thickness is 0.3mm, it is best for both PCB with or without V-groove.
• Need no pallet(fixture) to cut PCB because it use width adjustable mechanical chuck.
  (*In case need pallet it depends on the PCB shapes)

• Max.300mm/s cutting speed available for paper phenol PCB when you using newly developed tip saw. And also support Alu PCB cutting.

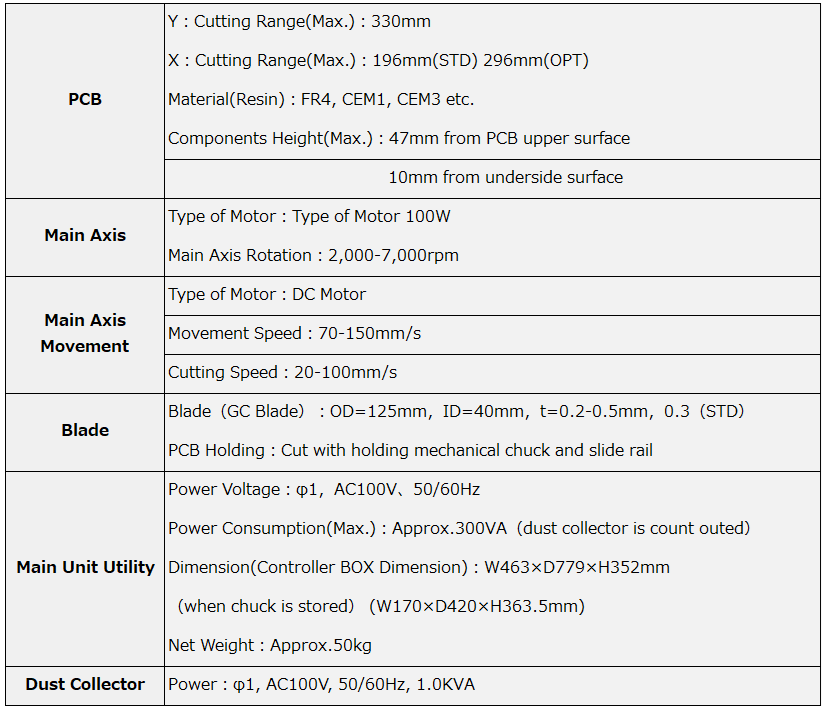

Basic Specifications
