【Shoritsu Electric Industry】 Rudra2

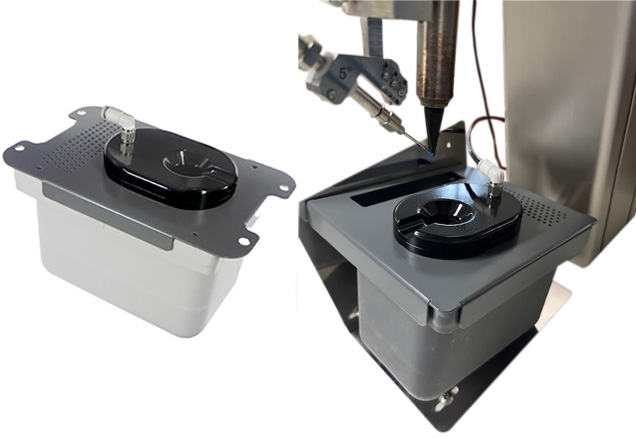

“Rudra2” is a cyclone type soldering iron cleaner for the soldering robot.The feature is that there is no need to adjust the air blowing nozzle and the tip of the soldering iron is cleaned by utilizing the cyclonic airflow.The main feature of this product is that there is no repetition of solder dust and it does not affect the cleaning around the robot or the product board to be soldered.

Features

• Reduce the complexity of cleaning iron head.
• Reduce the purchase cost of iron head consumables.
• Slow down the aging of the iron head and reduce the frequency of replacement.
• Remove the solder residue from the soldering head thoroughly.
• Prevent the scattering of solder slag when cleaning the head.

製品仕様

AIR PRESSURE：0.3MPa～0.5MPa

Maximum iron tip size：Φ14

External dimensions：84mm(W) × 144mm(D) × 104mm(H)
